Product Description:
Product Description

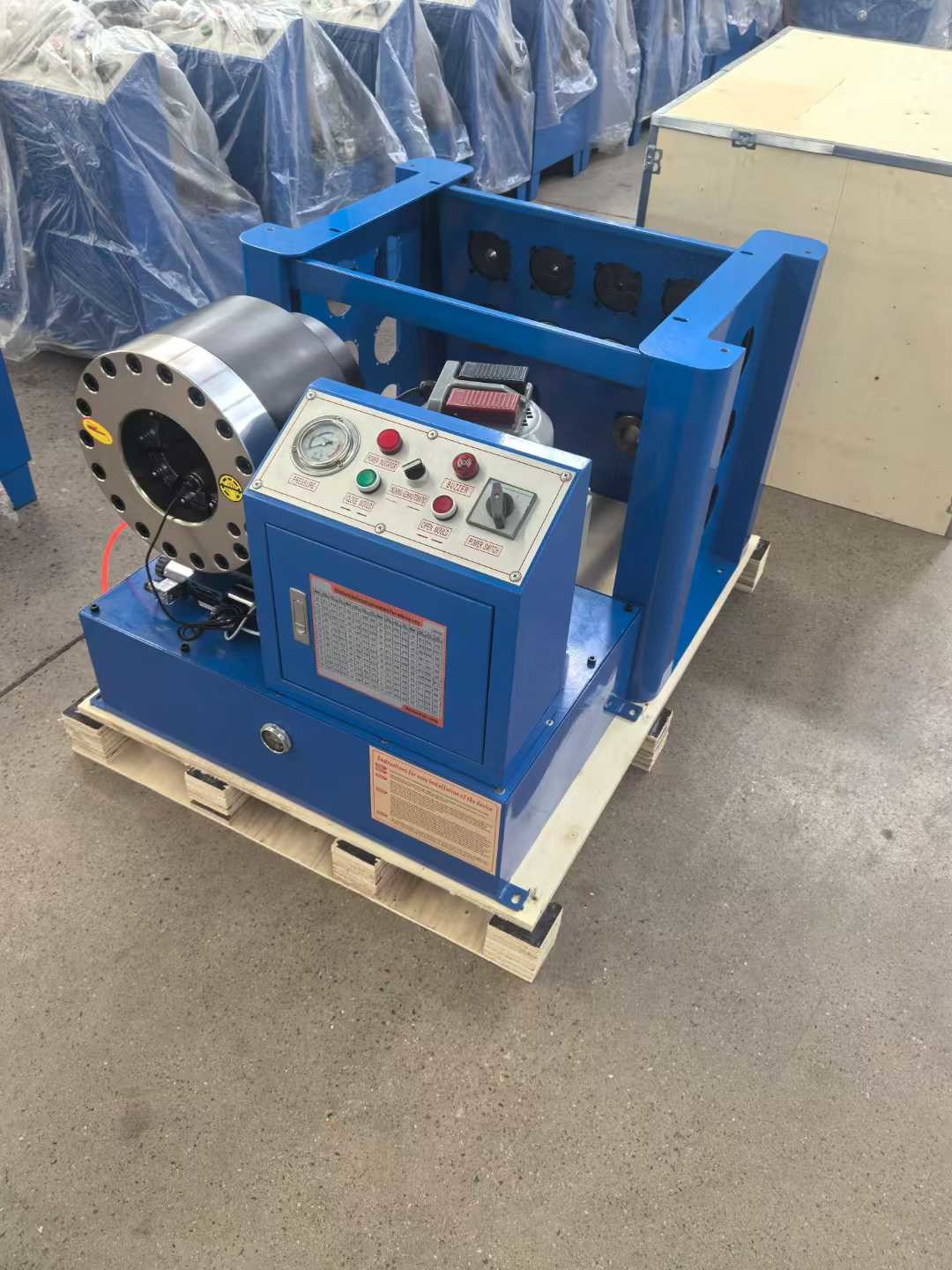

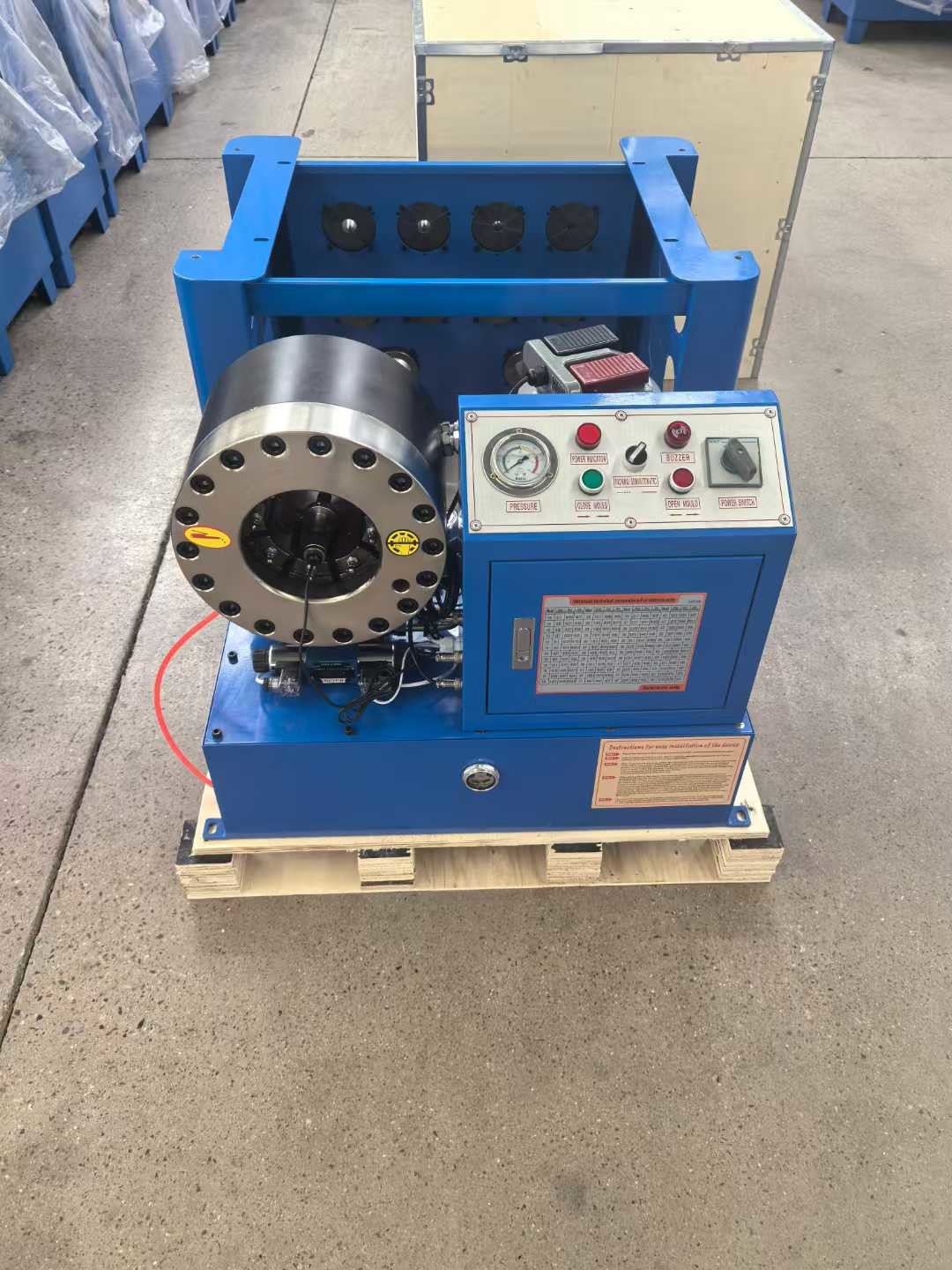

Product Name: Portable Hydraulic Hose Crimper
Color: Electric Blue
Crimping Range: 1/4 to 1.5 Inch (6 to 38 mm)

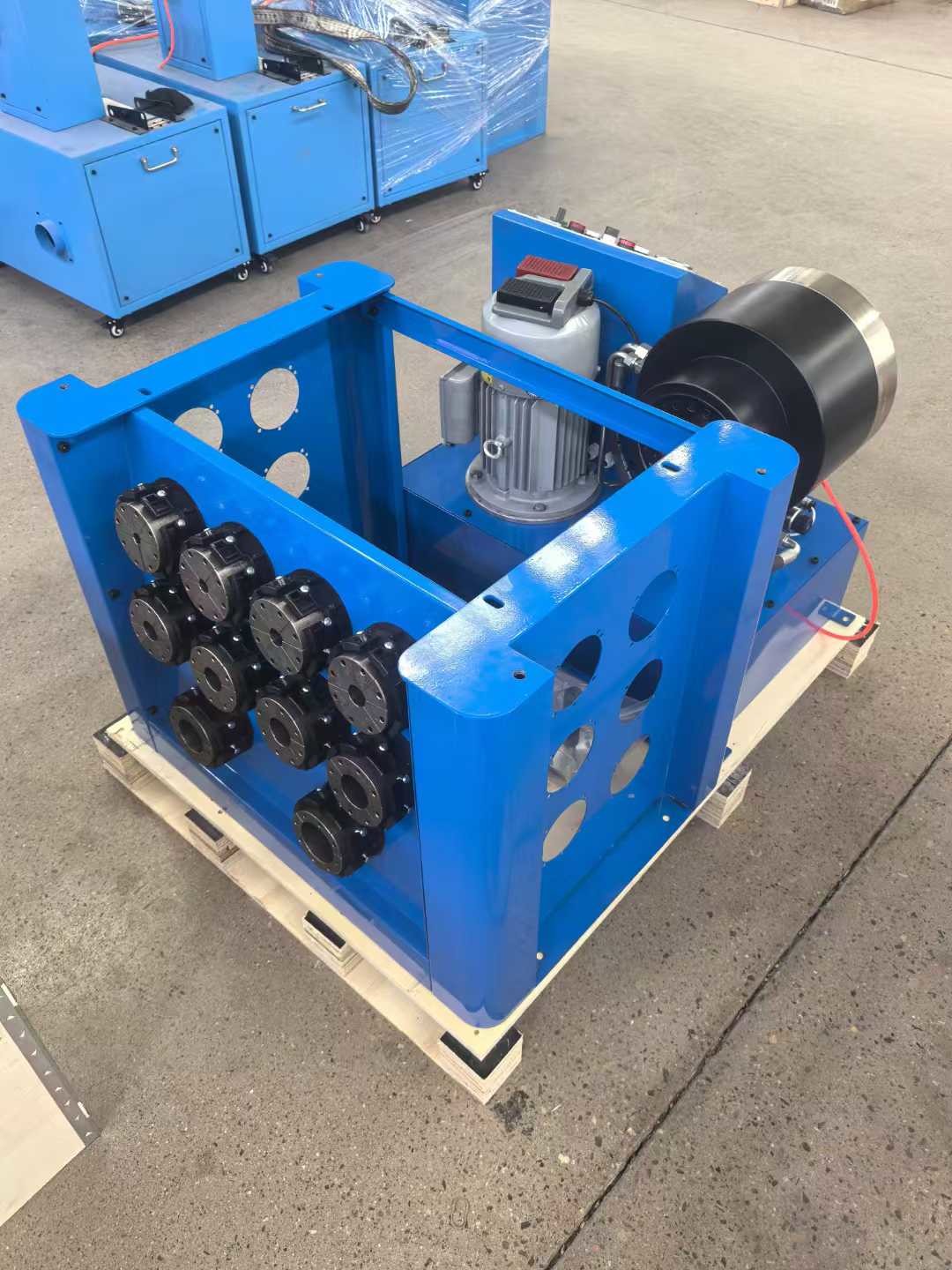

Included Accessories: Rack and Fast Change Mould Tools
Key Features:
- Efficient Performance: Engineered for quick and effective crimping, enhancing productivity in various applications.
- Fast Change Mould Tools: Designed for rapid adjustments, allowing for seamless transitions between different hose sizes.
- Portable Design: Lightweight and easy to transport, making it suitable for on-site work and diverse environments.
Market Advantage:
- This electric blue portable hydraulic hose crimper is ideal for professionals seeking a reliable and versatile solution for hyd hose crimping tasks.
Note
| crimping range | 6-38 mm(1/4~1.5") |
| quantity of dies | 8 sets |
| accuracy | 0.01 mm |
| output volume of pump | 2.5L/5L |
| system pressure | 26mpa/31.5mpa |
| motor power | 3kw/4Kw |
| voltage | 220v/240v/380v/415v (optional) |
| crimping force | 300 t |
| work efficiency | 200pcs/h |
| maximum open diameter | 104 mm |
| the max open tolerance | 20 ±mm |
| machine dimension | 950*630*700 mm |
| package dimension | 1000*680*750 mm |
| net weight | 275 kg |
| gross weight | 300 kg |
Features:
- Product Name: Portable Hydraulic Hose Crimper
- Crimping Speed: 200 Pcs/h
- Voltage: 220v/240v/380v/415v (optional)
- Max Pressure: 26mpa/31.5mpa
- Motor Power: 3kw/4kw
- Type: Crimper
- Features: Quick change mould tools, 6 to 38mm
Technical Parameters:
| Product Name | Technical Parameters |
|---|
| Portable Hydraulic Hose Crimper | Max Pressure: 26mpa/31.5mpa
Motor Power: 3kw/4kw
Crimping Force: 300T
Size: 950*630*700 Mm
Warranty: 1 Year
Voltage: 220v/240v/380v/415v (optional)
Crimping Range: 1/4-1.5 Inch
Weight: 275kg
Type: Crimper
Different Control System: 6 to 38mm |
Applications:
The FY Portable Hydraulic Hose Crimper is designed to quickly and efficiently crimp 1/4-1.5 inch hoses. This makes it an ideal tool for factories, workshops, and other industrial facilities. It has a quick change mould tool, allowing it to crimp 6 to 38mm hoses, and its button control is easy to use and operate. It is powered by a 3kw or 4kw motor, and can crimp up to 200 hoses per hour. It is also compatible with 220v/240v/380v/415v power sources, making it suitable for almost any environment. With its lightweight and portable design, this crimper is a great choice for anyone looking for an efficient and reliable crimping solution.
Customization:
Customized Services for FY-P38 Portable Hydraulic Hose Crimper
Brand Name: FY
Model Number: FY-P38
Place of Origin: China
Voltage: 220v/240v/380v/415v (optional)
Product Name: Portable Hydraulic Hose Crimper
Crimping Force: 300T
Power Source: Hydraulic
Motor Power: 3kw/4kw
Features: PLC pannal, quick change mould tools, different control system
Support and Services:
Portable Hydraulic Hose Crimper Technical Support and Service
We are committed to providing our customers with the highest quality Portable Hydraulic Hose Crimper. We offer a complete line of technical support and services to ensure our customers get the most out of their purchase. Our technical support and services include:
- Onsite installation and training
- Troubleshooting and repair services
- Maintenance and inspection services
- Custom design and manufacturing services
- Product testing and quality assurance
- Parts and accessories
Our team of experienced technicians is available to provide immediate assistance with your Portable Hydraulic Hose Crimper needs. Contact us today to learn more about our technical support and service options.
Packing and Shipping:
Portable Hydraulic Hose Crimper Packaging and Shipping:
- The crimper is packed in a cardboard box containing foam inserts for extra protection.
- The package is then sealed with a plastic wrap and shipped.
- The package is labeled with basic information such as item description, weight, and destination.
- The package is then shipped through a reliable courier service.
FAQ:
- Q: What is the brand name of the Portable Hydraulic Hose Crimper?
- A: The brand name of the Portable Hydraulic Hose Crimper is FY.
- Q: What is the model number of the Portable Hydraulic Hose Crimper?
- A: The model number of the Portable Hydraulic Hose Crimper is FY-P38.
- Q: Where is the Portable Hydraulic Hose Crimper made?
- A: The Portable Hydraulic Hose Crimper is made in China.
- Q: What is the purpose of using a Portable Hydraulic Hose Crimper?
- A: The Portable Hydraulic Hose Crimper is used to crimp hoses for hydraulic systems.
- Q: What is the size of the Portable Hydraulic Hose Crimper?
- A: The size of the Portable Hydraulic Hose Crimper is 10” x 5” x 4”.
